The primary interface to client networking functionality. More...

Detailed Description

The primary interface to client networking functionality.

Definition at line 25 of file PgeIClient.h.

#include <PgeIClient.h>

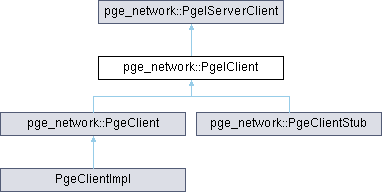

Inheritance diagram for pge_network::PgeIClient:

Public Member Functions
virtual bool	connectToServer (const std::string &sServerAddress, const std::string &sAppVersion="")=0
	Opens a connection to a server instance.

virtual const pge_network::PgeNetworkConnectionHandle &	getConnectionHandle () const =0
	Returns client's handle to the connection opened towards the server.

virtual const pge_network::PgeNetworkConnectionHandle &	getConnectionHandleServerSide () const =0
	Returns server's handle to the connection opened towards this client.

virtual const char *	getServerAddress () const =0

virtual int	getPing (bool bForceUpdate)=0

virtual float	getQualityLocal (bool bForceUpdate)=0

virtual float	getQualityRemote (bool bForceUpdate)=0

virtual float	getRxByteRate (bool bForceUpdate)=0

virtual float	getTxByteRate (bool bForceUpdate)=0

virtual int64_t	getPendingUnreliableBytes (bool bForceUpdate)=0

virtual int64_t	getPendingReliableBytes (bool bForceUpdate)=0

virtual int64_t	getSentButUnAckedReliableBytes (bool bForceUpdate)=0

virtual int64_t	getInternalQueueTimeUSecs (bool bForceUpdate)=0

virtual std::string	getDetailedConnectionStatus () const =0

Public Member Functions inherited from pge_network::PgeIServerClient
virtual bool	initialize ()=0
	Initialize the network instance.

virtual bool	shutdown ()=0
	This stops the network instance.

virtual bool	isInitialized () const =0
	Gets the state of the network instance.

virtual void	disconnect (const std::string &sExtraDebugText="")=0
	Terminates the active connection of the network instance.

virtual void	Update ()=0

virtual bool	pollIncomingMessages ()=0
	Moves incoming packets from the underlying network layer to PGE network layer as PgePackets.

virtual void	pollConnectionStateChanges ()=0

virtual std::size_t	getPacketQueueSize () const =0

virtual pge_network::PgePacket	popFrontPacket () noexcept(false)=0

virtual std::set< pge_network::PgePktId > &	getAllowListedPgeMessages ()=0

virtual std::set< pge_network::MsgApp::TMsgId > &	getAllowListedAppMessages ()=0

virtual void	send (const pge_network::PgePacket &pkt, const pge_network::PgeNetworkConnectionHandle &connHandle=pge_network::ServerConnHandle)=0
	Sends the given packet to the network instance specified.

virtual uint32_t	getRxPacketCount () const =0

virtual uint32_t	getTxPacketCount () const =0

virtual uint32_t	getInjectPacketCount () const =0

virtual uint32_t	getRxPacketPerSecondCount () const =0

virtual uint32_t	getTxPacketPerSecondCount () const =0

virtual uint32_t	getInjectPacketPerSecondCount () const =0

virtual const std::map< pge_network::MsgApp::TMsgId, uint32_t > &	getRxMsgCount () const =0

virtual const std::map< pge_network::MsgApp::TMsgId, uint32_t > &	getTxMsgCount () const =0

virtual const std::map< pge_network::MsgApp::TMsgId, uint32_t > &	getInjectMsgCount () const =0

virtual std::map< pge_network::MsgApp::TMsgId, std::string > &	getMsgAppId2StringMap ()=0

virtual uint32_t	getRxByteCount () const =0

virtual uint32_t	getTxByteCount () const =0

virtual uint32_t	getInjectByteCount () const =0

virtual void	WriteList () const =0
	Writes statistics to console.

Static Public Member Functions
static const char *	getLoggerModuleName ()
	Returns the logger module name of this class.

Member Function Documentation

◆ connectToServer()

virtual bool pge_network::PgeIClient::connectToServer	(	const std::string &	sServerAddress,
		const std::string &	sAppVersion = "" )

pure virtual

Opens a connection to a server instance.

If the function is successful, any call to the derived isInitialized() and isConnected() is expected to return true. Note: you can disconnect from server by invoking the derived disconnect() or shutdown() which are implemented already in hidden class.

Parameters

sServerAddress	IPv4 or IPv6 address of PgeServer we want to connect to.
sAppVersion	Client application version. If server expects a specific client version, we should fill it here.

Returns: True on success, false otherwise or when it is already connected to server. Note that mismatch between the specified client application version and server application version will be found out later and it does NOT have effect on the return value: the server will disconnect the mismatching client a bit later.

Implemented in pge_network::PgeClientStub, and PgeClientImpl.
