Detailed Description

Definition at line 30 of file PureRendererSWincremental.cpp.

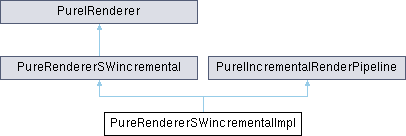

Inheritance diagram for PureRendererSWincrementalImpl:

Public Member Functions
virtual	~PureRendererSWincrementalImpl ()
	Calls shutdown().

TPureUInt	initialize (TPureUInt width, TPureUInt height, TPURE_DISPLAY_MODES dmode, TPureUInt freq, TPureInt cdepth, TPureInt zdepth, TPureInt stencil, TPureInt samples, HWND window=NULL)
	Documentation is at public PureRendererSWincremental class definition.

TPureBool	shutdown ()
	This stops the renderer.

TPureBool	isInitialized () const
	Gets the state of the renderer.

void	SetManagers (PureObject3DManager _objmgr, PureUiManager _uimgr, PureCamera *_cam)
	This should be called after initialization, prior to first call to RenderScene().

void	RenderObject (PureObject3D &object)
	Not implemented.

void	RenderScene ()
	Renders the scene.

const TPURE_RENDER_HINT &	getRenderHints ()
	Get current render hints.

void	SetRenderHints (const TPURE_RENDER_HINT &hints)
	Set current render hints.

void	ResetStatistics ()
	Resets "Current Statistics".

void	WriteStats () const
	Writes "Current Statistics" and "Last Frame Statistics" to the console window.

void	CheckConsistency () const
	Runs an internal consistency test, just for debug.

Public Member Functions inherited from PureRendererSWincremental
CConsole &	getConsole () const
	Returns access to console preset with logger module name as this class.

Public Member Functions inherited from PureIRenderer
Public Member Functions inherited from PureIIncrementalRenderPipeline

Private Member Functions
	PureRendererSWincrementalImpl ()
	NULLs members only.

	PureRendererSWincrementalImpl (PGEcfgProfiles &cfgProfiles, PureWindow &_wnd, PureScreen &_scr, PureHwInfo &_hwinfo)

	PureRendererSWincrementalImpl (const PureRendererSWincrementalImpl &)

PureRendererSWincrementalImpl &	operator= (const PureRendererSWincrementalImpl &)

void	VertexProcessing (const TXYZ pVertices, TPureUInt nVertices_h, bool bIndexed, const void pVertexIndices, TPureUInt nVertexIndices_h, unsigned int nIndicesType, TPURE_TRANSFORMED_VERTEX *pVerticesTransf, const TXYZ &pos, const TXYZ &rot, const TXYZ &scaling, const TXYZ &campos, const TXYZ &camrot)
	Loop over the input vertices and transform them into pVerticesTransf array.

void	PrimitiveAssembly (TPURE_TRANSFORMED_VERTEX *pVerticesTransf, TPureUInt nVertexIndices_h, const TXYZ &pos, const TXYZ &rot, const TXYZ &campos, const TXYZ &camrot, TPureInt vp_x, TPureInt vp_y, TPureUInt vp_w, TPureUInt vp_h)
	Loop over the input triangles and throw away those which are outside of the view frustum.

void	GeometricStage (const TXYZ pVertices, TPureUInt nVertices_h, bool bIndexed, const void pVertexIndices, TPureUInt nVertexIndices_h, unsigned int nIndicesType, TPURE_TRANSFORMED_VERTEX *pVerticesTransf, const TXYZ &pos, const TXYZ &rot, const TXYZ &scaling, const TXYZ &campos, const TXYZ &camrot, TPureInt vp_x, TPureInt vp_y, TPureUInt vp_w, TPureUInt vp_h)
	This should be called for every renderable object.

void	RasterStage ()

void	SetPixel (int x, int y, TRGBAUBYTE color, TPureInt vp_x, TPureInt vp_y, TPureUInt vp_w, TPureUInt vp_h)

void	Line (int x1, int y1, int x2, int y2, TRGBAUBYTE color, TPureInt vp_x, TPureInt vp_y, TPureUInt vp_w, TPureUInt vp_h)

void	RenderStage (TPureUInt nVertexIndices_h, TPURE_TRANSFORMED_VERTEX *pVerticesTransf, TPureInt vp_x, TPureInt vp_y, TPureUInt vp_w, TPureUInt vp_h)
	This should be called for every renderable object.

void	ClearColorBuffer ()

void	BeginRendering ()
	Sets viewport size and clears buffers.

void	SwitchToPerspectiveProjection ()
	Sets perspective projection.

void	SwitchToOrtographicProjection ()
	Sets orthographic projection.

void	Draw3DObjects ()
	Draws 3D objects.

void	Draw2DObjects ()
	Draws 2D objects.

void	SyncToScreen ()

void	FinishRendering ()
	Forces pending tasks to be finished and displays the rendered picture.

void	printFeatureList (const std::string &features, const char *endstring)
	Writes the given list to console.

void	printOGLfeatures ()
	Writes OGL feature list to console.

void	printWGLfeatures ()
	Writes WGL feature list to console.

Private Attributes
TPURE_RENDER_HINT	renderHints
	Render hints.

TPureBool	bInited

PGEcfgProfiles &	m_cfgProfiles

PureWindow &	wnd
	Our window, where we draw to, singleton.

PureHwInfo &	hwInfo
	Hardware infos, singleton.

PureScreen &	screen
	Our screen, singleton.

PureObject3DManager *	pObject3DMgr
	ObjectManager, at least 1 instance.

PureCamera *	pCamera
	Camera, at least 1 instance.

PureUiManager *	pUImgr
	UI manager, singleton.

TPureBool	bLighting

HDC	hColorBufferDC
	Memory Device Context for Color Buffer, compatible with wnd's DC.

BITMAPINFO	biColorBufferDDB
	Attributes of Color Buffer DIB.

HBITMAP	hColorBufferDDB
	Handle to Color Buffer DIB.

BYTE *	pColorBufferDIB
	Color buffer.

float *	pZBuffer
	Depth buffer.

Friends
class	PureRendererSWincremental

Additional Inherited Members
Static Public Member Functions inherited from PureRendererSWincremental
static PureRendererSWincremental &	createAndGet (PGEcfgProfiles &cfgProfiles, PureWindow &_wnd, PureScreen &_scr, PureHwInfo &_hwinfo)
	Creates and gets the singleton implementation instance.

static const char *	getLoggerModuleName ()
	Returns the logger module name of this class.

Static Public Attributes inherited from PureRendererSWincremental
static const TPURE_RENDER_HINT	DefaultHints = 0
	Default render hints for PureRendererSWincremental.

Constructor & Destructor Documentation

◆ ~PureRendererSWincrementalImpl()

PureRendererSWincrementalImpl::~PureRendererSWincrementalImpl ( )

virtual

Calls shutdown().

Definition at line 187 of file PureRendererSWincremental.cpp.

◆ PureRendererSWincrementalImpl() [1/3]

PureRendererSWincrementalImpl::PureRendererSWincrementalImpl ( )

private

NULLs members only.

Definition at line 432 of file PureRendererSWincremental.cpp.

◆ PureRendererSWincrementalImpl() [2/3]

PureRendererSWincrementalImpl::PureRendererSWincrementalImpl	(	PGEcfgProfiles &	cfgProfiles,
		PureWindow &	_wnd,
		PureScreen &	_scr,
		PureHwInfo &	_hwinfo )

private

Definition at line 450 of file PureRendererSWincremental.cpp.

◆ PureRendererSWincrementalImpl() [3/3]

PureRendererSWincrementalImpl::PureRendererSWincrementalImpl ( const PureRendererSWincrementalImpl & other )

private

Definition at line 472 of file PureRendererSWincremental.cpp.

Member Function Documentation

◆ BeginRendering()

void PureRendererSWincrementalImpl::BeginRendering ( )

private

Sets viewport size and clears buffers.

Definition at line 874 of file PureRendererSWincremental.cpp.

◆ CheckConsistency()

void PureRendererSWincrementalImpl::CheckConsistency ( ) const

Runs an internal consistency test, just for debug.

Definition at line 415 of file PureRendererSWincremental.cpp.

◆ ClearColorBuffer()

void PureRendererSWincrementalImpl::ClearColorBuffer ( )

private

Definition at line 842 of file PureRendererSWincremental.cpp.

◆ Draw2DObjects()

void PureRendererSWincrementalImpl::Draw2DObjects ( )

private

Draws 2D objects.

Definition at line 989 of file PureRendererSWincremental.cpp.

◆ Draw3DObjects()

void PureRendererSWincrementalImpl::Draw3DObjects ( )

private

Draws 3D objects.

Definition at line 903 of file PureRendererSWincremental.cpp.

◆ FinishRendering()

void PureRendererSWincrementalImpl::FinishRendering ( )

private

Forces pending tasks to be finished and displays the rendered picture.

Definition at line 1006 of file PureRendererSWincremental.cpp.

◆ GeometricStage()

void PureRendererSWincrementalImpl::GeometricStage	(	const TXYZ *	pVertices,
		TPureUInt	nVertices_h,
		bool	bIndexed,
		const void *	pVertexIndices,
		TPureUInt	nVertexIndices_h,
		unsigned int	nIndicesType,
		TPURE_TRANSFORMED_VERTEX *	pVerticesTransf,
		const TXYZ &	pos,
		const TXYZ &	rot,
		const TXYZ &	scaling,
		const TXYZ &	campos,
		const TXYZ &	camrot,
		TPureInt	vp_x,
		TPureInt	vp_y,
		TPureUInt	vp_w,
		TPureUInt	vp_h )

privatevirtual

This should be called for every renderable object.

Renderer cannot access private parts of objects. So objects have to provide interface for their input and output data. Input data in this case is the object's base vertices / triangle list selected by LOD. Output data are the vertices / triangle list after vertex processing and primitive assembly. Input data -> VS -> VP -> PA -> Output data.

Implements PureIIncrementalRenderPipeline.

Definition at line 678 of file PureRendererSWincremental.cpp.

◆ getRenderHints()

const TPURE_RENDER_HINT & PureRendererSWincrementalImpl::getRenderHints ( )

virtual

Get current render hints.

Render hints are basically debug settings for the renderer used in rare circumstances. The available render hints are documented at each renderer implementation.

Implements PureIRenderer.

Definition at line 388 of file PureRendererSWincremental.cpp.

◆ initialize()

TPureUInt PureRendererSWincrementalImpl::initialize	(	TPureUInt	width,
		TPureUInt	height,
		TPURE_DISPLAY_MODES	dmode,
		TPureUInt	freq,
		TPureInt	cdepth,
		TPureInt	zdepth,
		TPureInt	stencil,
		TPureInt	samples,
		HWND	window = NULL )

virtual

Documentation is at public PureRendererSWincremental class definition.

Implements PureRendererSWincremental.

Definition at line 196 of file PureRendererSWincremental.cpp.

◆ isInitialized()

TPureBool PureRendererSWincrementalImpl::isInitialized ( ) const

virtual

Gets the state of the renderer.

Returns: True if the renderer is successfully initialized, false before initialization or after shutdown.

Implements PureIRenderer.

Definition at line 350 of file PureRendererSWincremental.cpp.

◆ Line()

void PureRendererSWincrementalImpl::Line	(	int	x1,
		int	y1,
		int	x2,
		int	y2,
		TRGBAUBYTE	color,
		TPureInt	vp_x,
		TPureInt	vp_y,
		TPureUInt	vp_w,
		TPureUInt	vp_h )

private

Definition at line 721 of file PureRendererSWincremental.cpp.

◆ operator=()

PureRendererSWincrementalImpl & PureRendererSWincrementalImpl::operator= ( const PureRendererSWincrementalImpl & )

private

Definition at line 489 of file PureRendererSWincremental.cpp.

◆ PrimitiveAssembly()

void PureRendererSWincrementalImpl::PrimitiveAssembly	(	TPURE_TRANSFORMED_VERTEX *	pVerticesTransf,
		TPureUInt	nVertexIndices_h,
		const TXYZ &	pos,
		const TXYZ &	rot,
		const TXYZ &	campos,
		const TXYZ &	camrot,
		TPureInt	vp_x,
		TPureInt	vp_y,
		TPureUInt	vp_w,
		TPureUInt	vp_h )

private

Loop over the input triangles and throw away those which are outside of the view frustum.

Transform the rest to screen coordinates.

Transformation is: Clip -> NDC -> Screen coordinate systems.

Definition at line 593 of file PureRendererSWincremental.cpp.

◆ printFeatureList()

void PureRendererSWincrementalImpl::printFeatureList	(	const std::string &	features,
		const char *	endstring )

private

Writes the given list to console.

◆ printOGLfeatures()

void PureRendererSWincrementalImpl::printOGLfeatures ( )

private

Writes OGL feature list to console.

◆ printWGLfeatures()

void PureRendererSWincrementalImpl::printWGLfeatures ( )

private

Writes WGL feature list to console.

◆ RasterStage()

void PureRendererSWincrementalImpl::RasterStage ( )

private

◆ RenderObject()

void PureRendererSWincrementalImpl::RenderObject ( PureObject3D & object )

virtual

Not implemented.

Use RenderScene() to render all objects.

Implements PureRendererSWincremental.

Definition at line 367 of file PureRendererSWincremental.cpp.

◆ RenderScene()

void PureRendererSWincrementalImpl::RenderScene ( )

virtual

Renders the scene.

No effect if the engine is not initialized. Note that the first call to this function might not result in actually producing picture of the scene, because the implementing renderer might use "feedback mode" which means that the geometry is transformed into feedback buffer for debugging purposes, and rasterization is not happening. This is true only for newly created objects though, which are rendered for the first time.

Implements PureIRenderer.

Definition at line 373 of file PureRendererSWincremental.cpp.

◆ RenderStage()

void PureRendererSWincrementalImpl::RenderStage	(	TPureUInt	nVertexIndices_h,
		TPURE_TRANSFORMED_VERTEX *	pVerticesTransf,
		TPureInt	vp_x,
		TPureInt	vp_y,
		TPureUInt	vp_w,
		TPureUInt	vp_h )

privatevirtual

This should be called for every renderable object.

Renderer cannot access private parts of objects. So objects have to provide interface for their input and output data. Input data in this case are the fragments after GeometricStage. Output data in this case is null, since we render the output to framebuffer here. Input data -> TS -> FP -> PSP -> Framebuffer.

Implements PureIIncrementalRenderPipeline.

Definition at line 783 of file PureRendererSWincremental.cpp.

◆ ResetStatistics()

void PureRendererSWincrementalImpl::ResetStatistics ( )

virtual

Resets "Current Statistics".

The renderer might collect statistical data during its lifetime or for a shorter period, that might be shown in debug log by WriteStats(). In any circumstances you want to reset this data i.e. restart measurements, this function does the job. If logging is enabled, it also logs statistics.

Implements PureIRenderer.

Definition at line 400 of file PureRendererSWincremental.cpp.

◆ SetManagers()

void PureRendererSWincrementalImpl::SetManagers	(	PureObject3DManager *	_objmgr,
		PureUiManager *	_uimgr,
		PureCamera *	_cam )

virtual

This should be called after initialization, prior to first call to RenderScene().

This is because these managers may depend on the initialization status of the renderer.

Implements PureIRenderer.

Definition at line 356 of file PureRendererSWincremental.cpp.

◆ SetPixel()

void PureRendererSWincrementalImpl::SetPixel	(	int	x,
		int	y,
		TRGBAUBYTE	color,
		TPureInt	vp_x,
		TPureInt	vp_y,
		TPureUInt	vp_w,
		TPureUInt	vp_h )

private

Definition at line 702 of file PureRendererSWincremental.cpp.

◆ SetRenderHints()

void PureRendererSWincrementalImpl::SetRenderHints ( const TPURE_RENDER_HINT & hints )

virtual

Set current render hints.

Render hints are basically debug settings for the renderer used in rare circumstances. The available render hints are documented at each renderer implementation.

Implements PureIRenderer.

Definition at line 394 of file PureRendererSWincremental.cpp.

◆ shutdown()

TPureBool PureRendererSWincrementalImpl::shutdown ( )

virtual

This stops the renderer.

Deletes everything created by the renderer. No effect before initialization. After shutdown, initialize() can be called again. Render hints are not affected.

Returns: True on successful shutdown, false otherwise.

Implements PureIRenderer.

Definition at line 322 of file PureRendererSWincremental.cpp.

◆ SwitchToOrtographicProjection()

void PureRendererSWincrementalImpl::SwitchToOrtographicProjection ( )

private

Sets orthographic projection.

Definition at line 893 of file PureRendererSWincremental.cpp.

◆ SwitchToPerspectiveProjection()

void PureRendererSWincrementalImpl::SwitchToPerspectiveProjection ( )

private

Sets perspective projection.

Definition at line 883 of file PureRendererSWincremental.cpp.

◆ SyncToScreen()

void PureRendererSWincrementalImpl::SyncToScreen ( )

private

Definition at line 994 of file PureRendererSWincremental.cpp.

◆ VertexProcessing()

void PureRendererSWincrementalImpl::VertexProcessing	(	const TXYZ *	pVertices,
		TPureUInt	nVertices_h,
		bool	bIndexed,
		const void *	pVertexIndices,
		TPureUInt	nVertexIndices_h,
		unsigned int	nIndicesType,
		TPURE_TRANSFORMED_VERTEX *	pVerticesTransf,
		const TXYZ &	pos,
		const TXYZ &	rot,
		const TXYZ &	scaling,
		const TXYZ &	campos,
		const TXYZ &	camrot )

private

Loop over the input vertices and transform them into pVerticesTransf array.

Number of input vertices is nVertices_h. If bIndexed is true:

pVertexIndices != NULL;
nVertexIndices_h > 0;
number of output vertices is nVertexIndices_h;
nVertices_h <= nVertexIndices_h; else
pVertexIndices = NULL;
nVertexIndices_h = 0;
number of output vertices is nVertices_h.

Transformation is: Model -> World -> View -> Clip coordinate systems.

Definition at line 510 of file PureRendererSWincremental.cpp.

◆ WriteStats()

void PureRendererSWincrementalImpl::WriteStats ( ) const

virtual

Writes "Current Statistics" and "Last Frame Statistics" to the console window.

These are explained at Debugging.

Implements PureIRenderer.

Definition at line 405 of file PureRendererSWincremental.cpp.

Friends And Related Symbol Documentation

◆ PureRendererSWincremental

friend class PureRendererSWincremental

friend

Definition at line 176 of file PureRendererSWincremental.cpp.

Member Data Documentation

◆ biColorBufferDDB

BITMAPINFO PureRendererSWincrementalImpl::biColorBufferDDB

private

Attributes of Color Buffer DIB.

Definition at line 78 of file PureRendererSWincremental.cpp.

◆ bInited

TPureBool PureRendererSWincrementalImpl::bInited

private

Definition at line 66 of file PureRendererSWincremental.cpp.

◆ bLighting

TPureBool PureRendererSWincrementalImpl::bLighting

private

Definition at line 75 of file PureRendererSWincremental.cpp.

◆ hColorBufferDC

HDC PureRendererSWincrementalImpl::hColorBufferDC

private

Memory Device Context for Color Buffer, compatible with wnd's DC.

Definition at line 77 of file PureRendererSWincremental.cpp.

◆ hColorBufferDDB

HBITMAP PureRendererSWincrementalImpl::hColorBufferDDB

private

Handle to Color Buffer DIB.

Definition at line 79 of file PureRendererSWincremental.cpp.

◆ hwInfo

PureHwInfo& PureRendererSWincrementalImpl::hwInfo

private

Hardware infos, singleton.

Definition at line 69 of file PureRendererSWincremental.cpp.

◆ m_cfgProfiles

PGEcfgProfiles& PureRendererSWincrementalImpl::m_cfgProfiles

private

Definition at line 67 of file PureRendererSWincremental.cpp.

◆ pCamera

PureCamera* PureRendererSWincrementalImpl::pCamera

private

Camera, at least 1 instance.

Definition at line 72 of file PureRendererSWincremental.cpp.

◆ pColorBufferDIB

BYTE* PureRendererSWincrementalImpl::pColorBufferDIB

private

Color buffer.

Definition at line 80 of file PureRendererSWincremental.cpp.

◆ pObject3DMgr

PureObject3DManager* PureRendererSWincrementalImpl::pObject3DMgr

private

ObjectManager, at least 1 instance.

Definition at line 71 of file PureRendererSWincremental.cpp.

◆ pUImgr

PureUiManager* PureRendererSWincrementalImpl::pUImgr

private

UI manager, singleton.

Definition at line 73 of file PureRendererSWincremental.cpp.

◆ pZBuffer

float* PureRendererSWincrementalImpl::pZBuffer

private

Depth buffer.

Definition at line 81 of file PureRendererSWincremental.cpp.

◆ renderHints

TPURE_RENDER_HINT PureRendererSWincrementalImpl::renderHints

private

Render hints.

Definition at line 65 of file PureRendererSWincremental.cpp.

◆ screen

PureScreen& PureRendererSWincrementalImpl::screen

private

Our screen, singleton.

Definition at line 70 of file PureRendererSWincremental.cpp.

◆ wnd

PureWindow& PureRendererSWincrementalImpl::wnd

private

Our window, where we draw to, singleton.

Definition at line 68 of file PureRendererSWincremental.cpp.

The documentation for this class was generated from the following file:

C:/__PR00F__/___developing___/projects/PGE/PGE/PURE/source/Render/PureRendererSWincremental.cpp

Detailed Description

Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Constructor & Destructor Documentation

◆ ~PureRendererSWincrementalImpl()

◆ PureRendererSWincrementalImpl() [1/3]

◆ PureRendererSWincrementalImpl() [2/3]

◆ PureRendererSWincrementalImpl() [3/3]

Member Function Documentation

◆ BeginRendering()

◆ CheckConsistency()

◆ ClearColorBuffer()

◆ Draw2DObjects()

◆ Draw3DObjects()

◆ FinishRendering()

◆ GeometricStage()

◆ getRenderHints()

◆ initialize()

◆ isInitialized()

◆ Line()

◆ operator=()

◆ PrimitiveAssembly()

◆ printFeatureList()

◆ printOGLfeatures()

◆ printWGLfeatures()

◆ RasterStage()

◆ RenderObject()

◆ RenderScene()

◆ RenderStage()

◆ ResetStatistics()

◆ SetManagers()

◆ SetPixel()

◆ SetRenderHints()

◆ shutdown()

◆ SwitchToOrtographicProjection()

◆ SwitchToPerspectiveProjection()

◆ SyncToScreen()

◆ VertexProcessing()

◆ WriteStats()

Friends And Related Symbol Documentation

◆ PureRendererSWincremental

Member Data Documentation

◆ biColorBufferDDB

◆ bInited

◆ bLighting

◆ hColorBufferDC

◆ hColorBufferDDB

◆ hwInfo

◆ m_cfgProfiles

◆ pCamera

◆ pColorBufferDIB

◆ pObject3DMgr

◆ pUImgr

◆ pZBuffer

◆ renderHints

◆ screen

◆ wnd
